Easy Fit Smart Lock
Your door.
Only smarter.
Unlock with the app, your fingerprint, a PIN code or an RFID tag - without replacing your existing lock.
- No drilling
- Under 10 minutes
- Keep your key
- Up to 12 months battery life*
- Fits many types of doors
Meet Easy Fit
The smart lock that works with what you already have.
Easy Fit sits discreetly on the inside of your door. The wireless keypad stays outside, so everyone can choose the way they prefer to unlock.

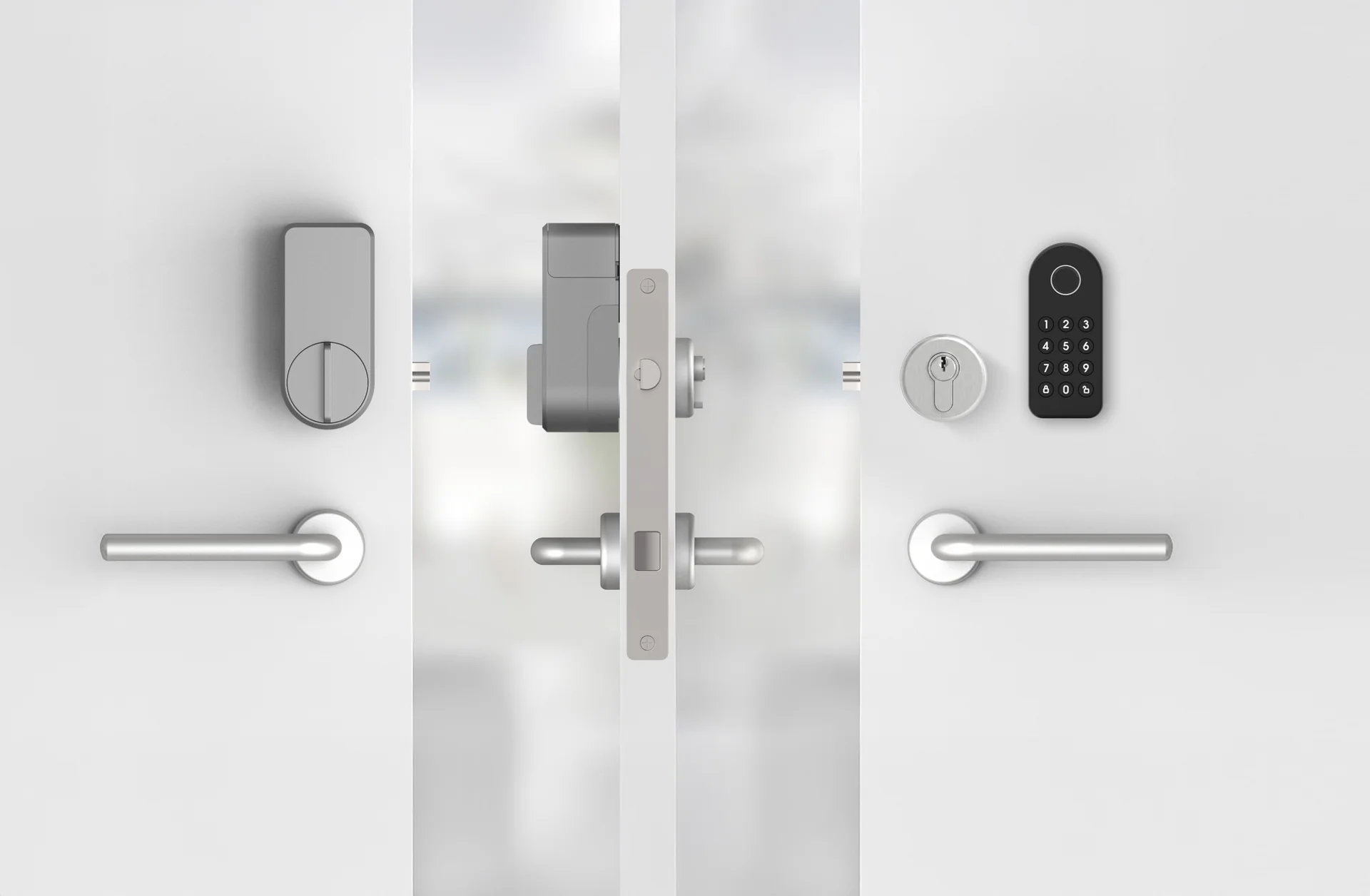

- Inside
- Smart lock over the thumbturn
- Outside
- Keypad with fingerprint, PIN and RFID Key Tag access
- Smart Lock
- 136.7 × 62.9 × 47 mm
- Keypad
- 105 x 47 x 30 mm, IP65
For rentals. For the lock you need to keep.
Smart access for rental apartments and homes where the existing lock needs to stay. Easy Fit mounts on the inside of a compatible lock, keeping the outside lock and keys in place. Check door compatibility and any landlord or building requirements before installation.
How it works
One system. Two sides of your door.
Easy Fit turns the lock you already use into a smarter, more flexible way to come home.

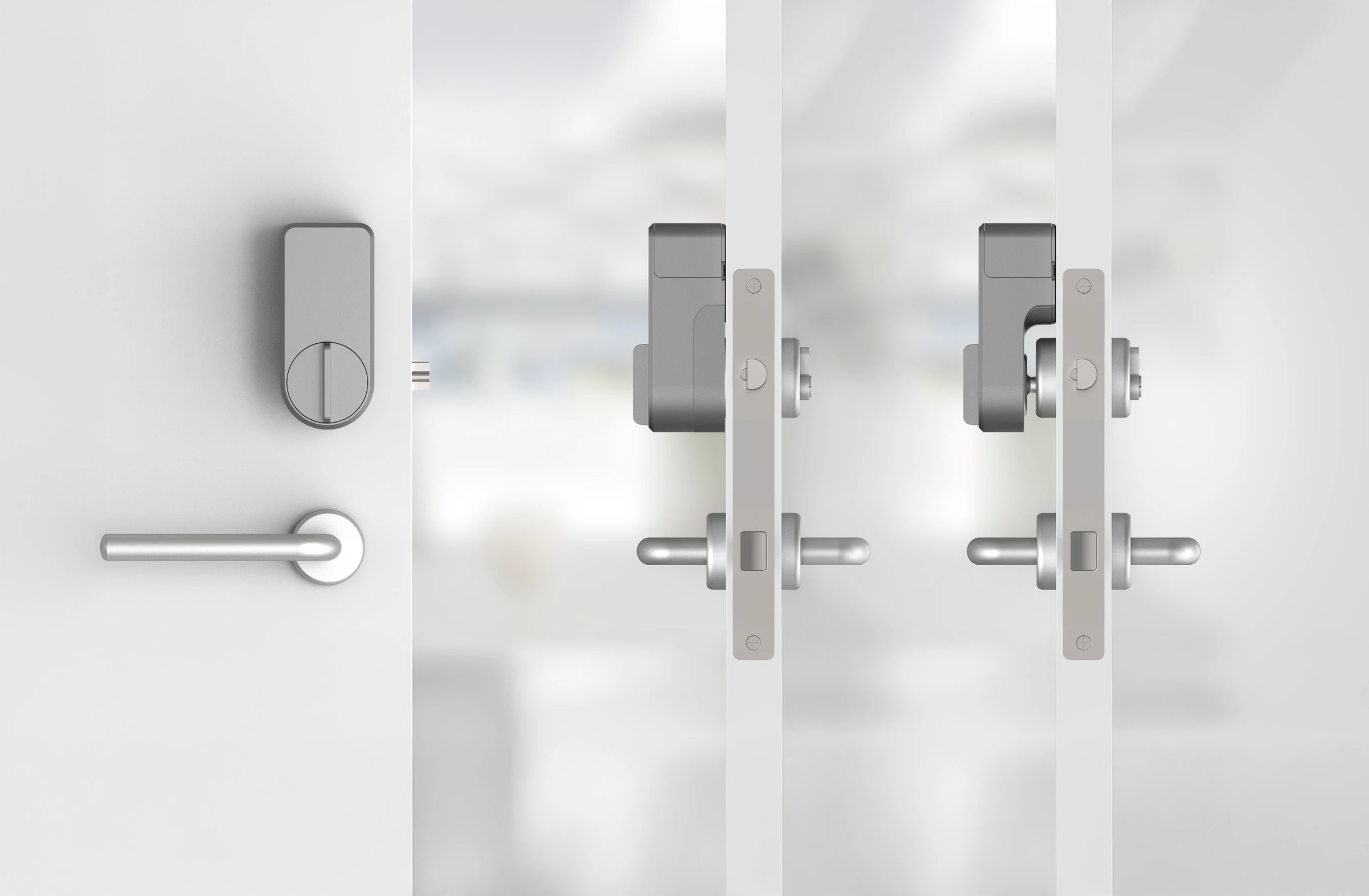

Inside
Easy Fit mounts over your existing thumbturn or key and turns the lock for you.
Your existing door
No new lock case and no drilling. The original outside cylinder stays in place.

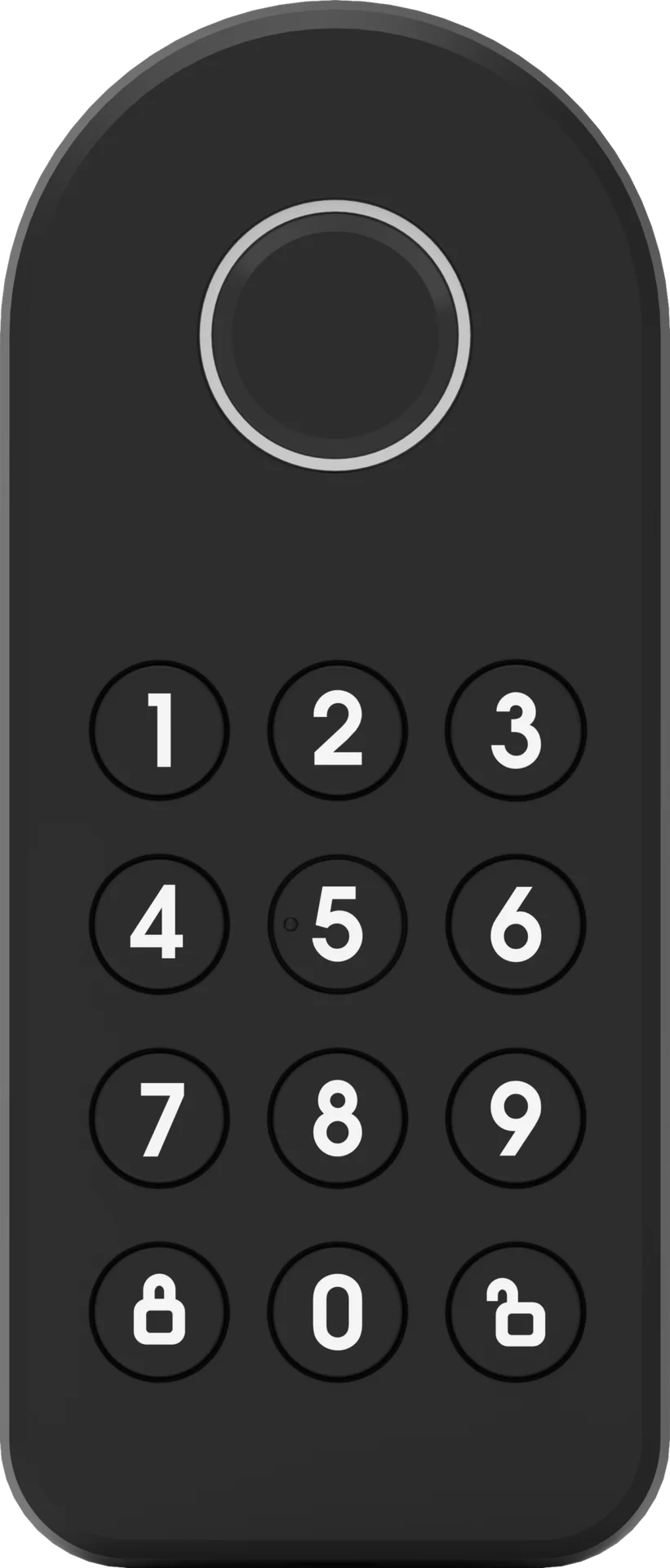

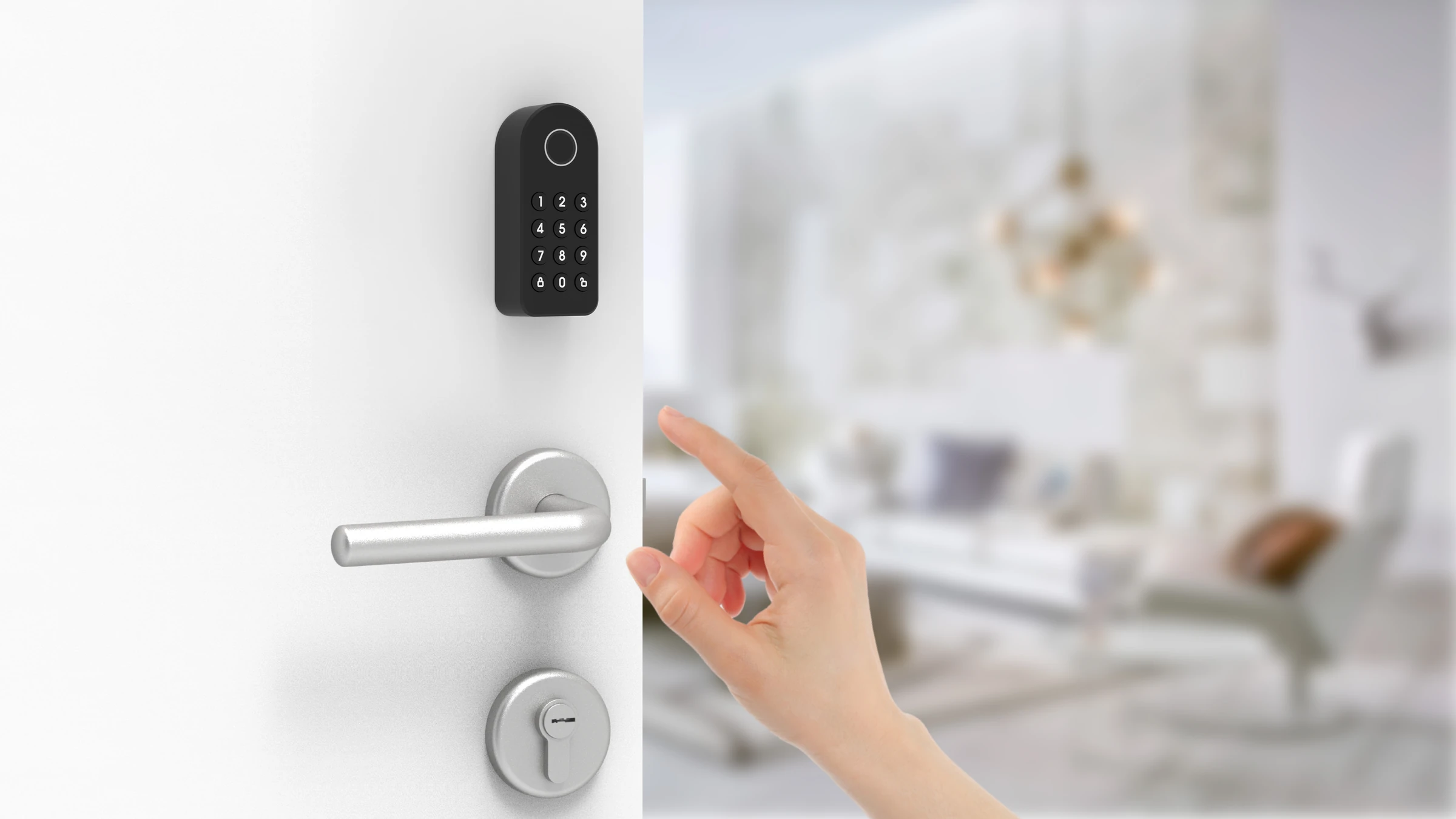

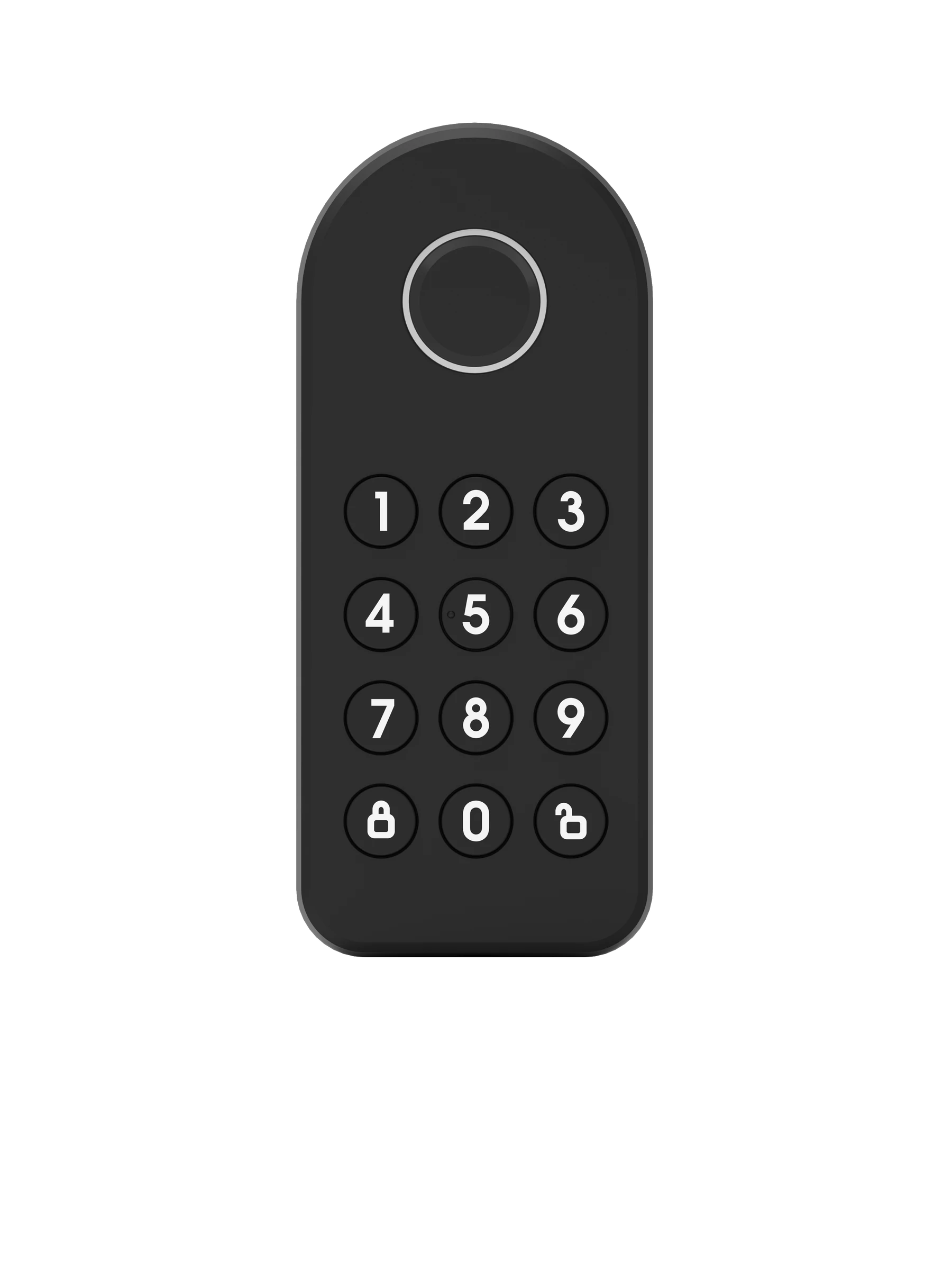

Outside
The keypad lets you unlock with fingerprint, PIN code or a registered RFID Key Tag.
Access your way
No key required. No key taken away.
Use the method that suits the moment. Easy Fit gives the household modern access while keeping the familiar mechanical backup where the existing cylinder supports it.
Heimgard Door App
Unlock locally over Bluetooth and manage access from your phone.
PIN code
Create 4-10 digit PIN codes for everyday access.
Fingerprint
Use one touch at the keypad for fast, personal entry.

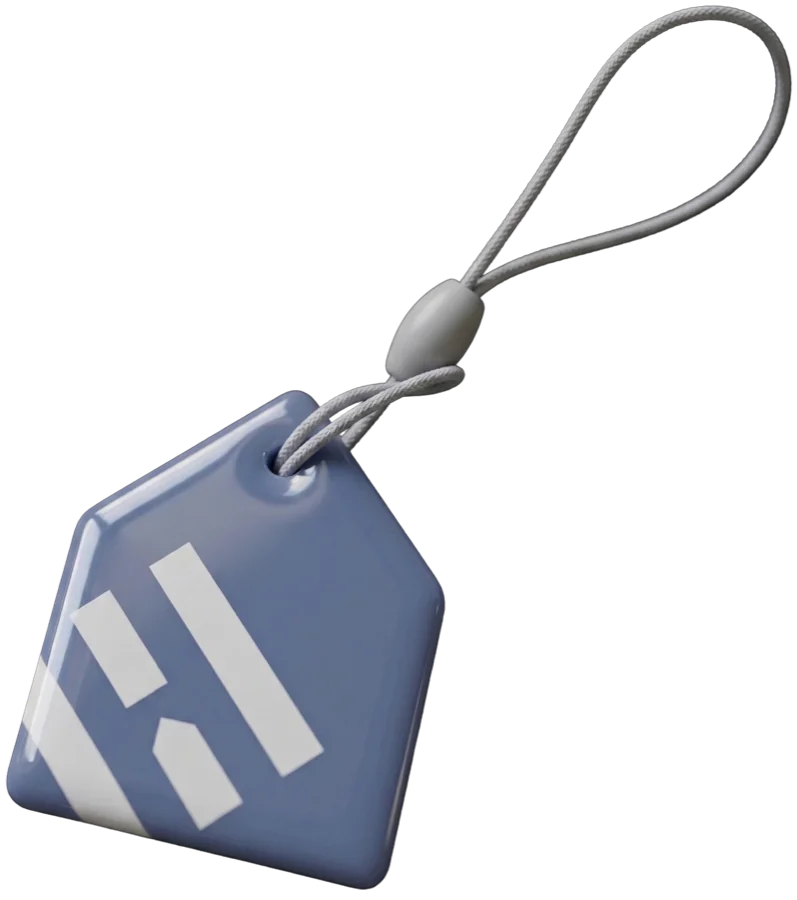

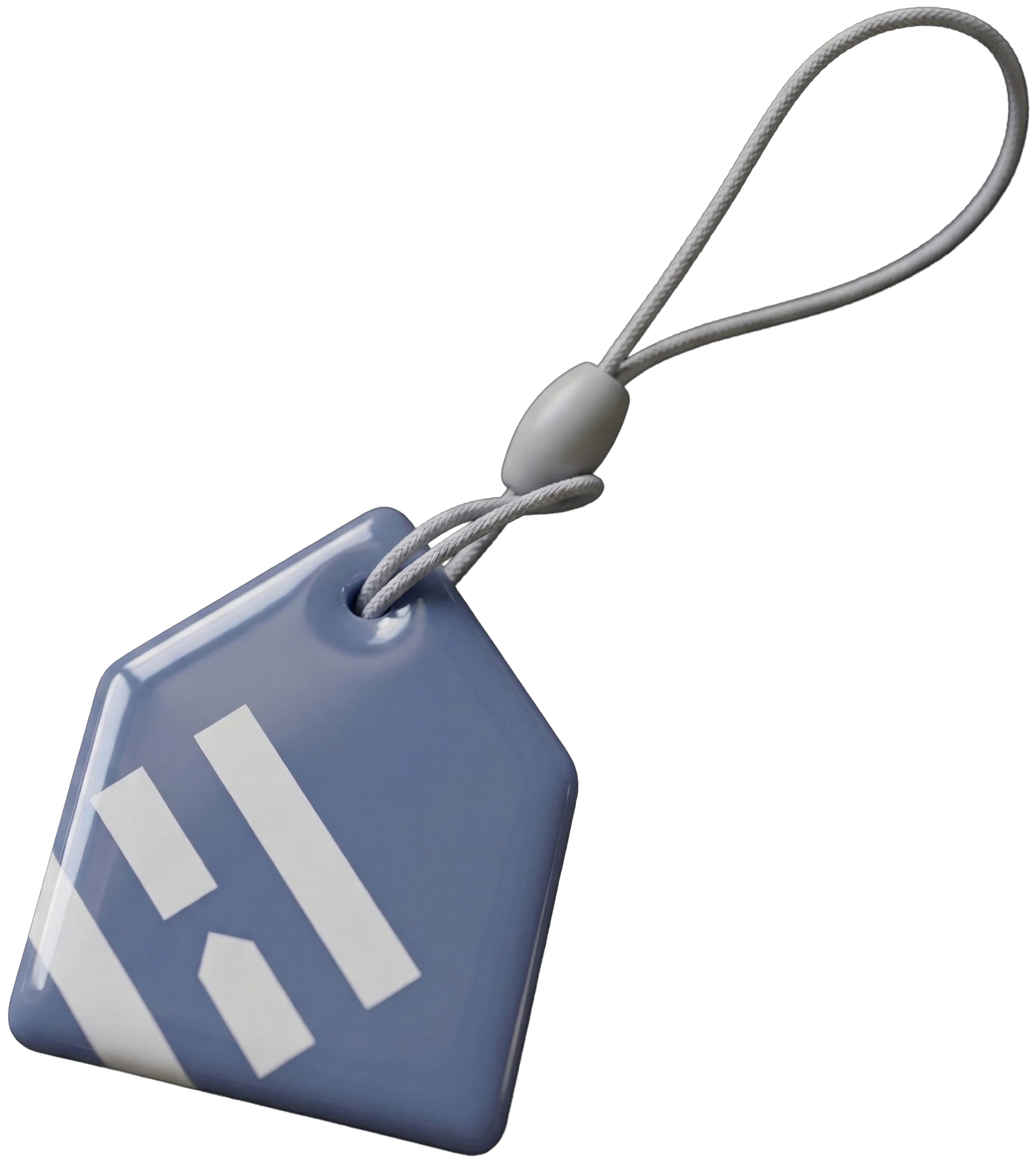

RFID Key Tag
Present a registered RFID tag to unlock without a phone.
Physical key
Keep using your existing key where the current cylinder supports it.
Everyday features
More than a way to unlock.
Manage these settings in the Heimgard Door App.
Adjustable Auto-Lock
Choose the delay before the lock automatically relocks after unlocking.
Not available when Spring Latch Mode is enabled.
A PIN for one visit
Create a one-time PIN in the app. It is automatically disabled after one use.
Access on a schedule
Set a daily access window for regular visitors, so their PIN works during the hours you choose.
Protection against PIN guessing
After five incorrect PINs within 30 minutes, the keypad pauses PIN entry for five minutes. Further incorrect attempts can extend the pause to 15 minutes.
At home on your door.
Easy installation
From standard lock to smart lock in four steps.
No electrician. No drilling. No replacement lock case. The Heimgard Door App guides installation, calibration and access management over Bluetooth.
- 01Check compatibilityLook at the inside hardware and confirm that the lock turns smoothly.
- 02Attach Easy Fit insideMount it over the existing thumbturn or key on the inside of the door.
- 03Attach the keypad outsidePlace the keypad where it is easy to reach.
- 04Add your usersRegister fingerprints, PIN codes and RFID Key Tags in the app.

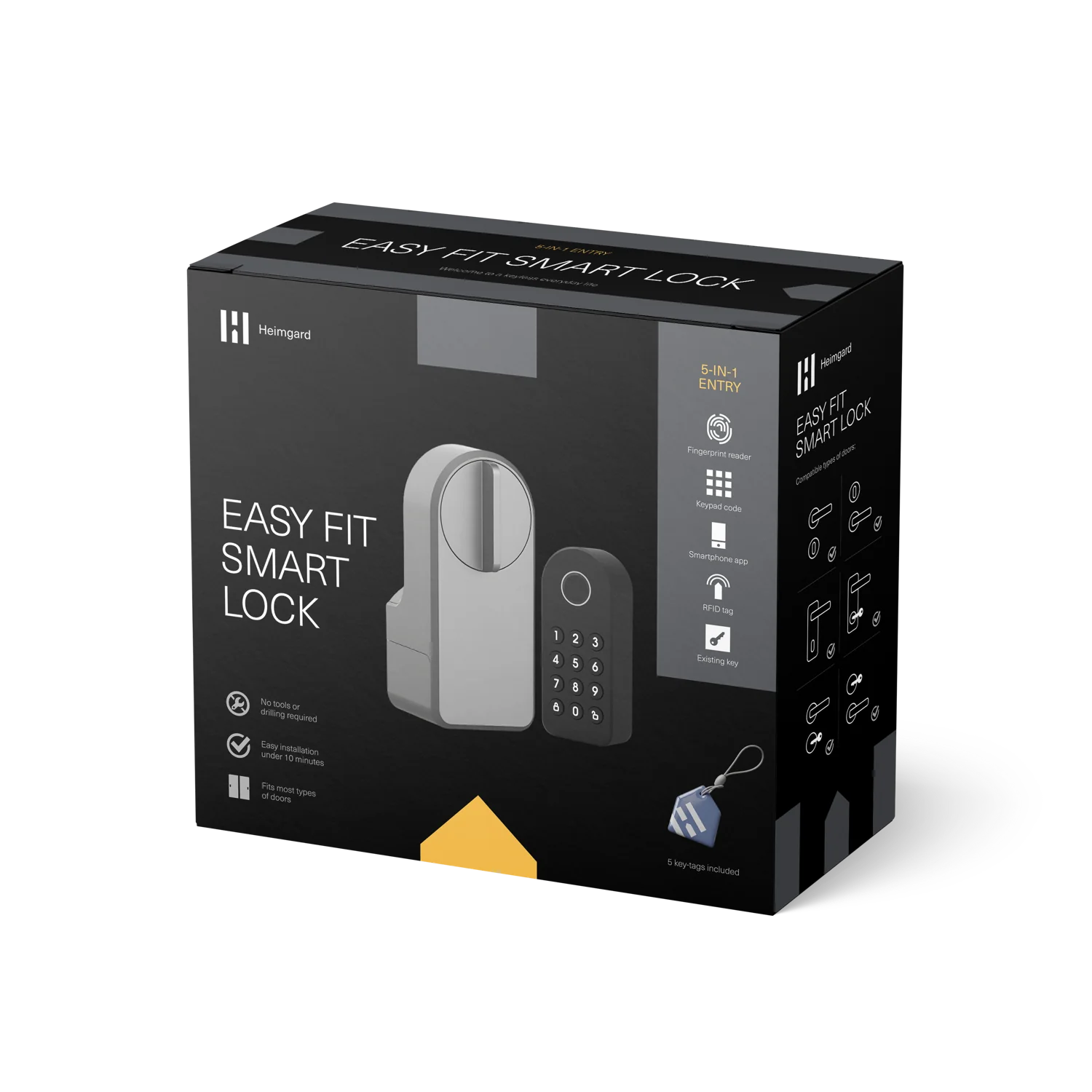

Everything you need
Ready to fit. Right out of the box.
The main products, mounting parts, batteries and RFID Key Tags are included, together with a Quick Start Guide.
Easy Fit Smart Lock
Wireless keypad
5 RFID Key Tags
6 AA batteries
See complete box contents
Easy Fit Smart Lock, Heimgard Keypad, thumbturn cover plate, alignment guide, mounting plate, 3 mm, 10 mm and 20 mm mounting spacers, thumbturn clamps A and B, rubber inserts, three adhesive pads, assembly screws and installation tool, adhesive promoter wipe, six AA alkaline batteries, 5 RFID Key Tags and Quick Start Guide.
Check your door
A quick check before you choose.
Easy Fit is the least invasive Heimgard option for a compatible existing lock. Check these points before purchase or installation.
Look inside
Check for a separate thumbturn, a key left in the cylinder, or a long handle plate.
Check the space
There should be at least 32 mm from the thumbturn centre to the nearest fixed obstruction.
Turn it smoothly
The thumbturn or key should rotate freely without unusual force.
Check the surface
The inside mounting surface should be clean, dry and suitable for the supplied mounting pad.
Take photos of the inside, outside and open door edge, plus close-up measurements with a ruler. A retailer, installer or Heimgard support can help with an initial check.
Ask support about compatibilityDimensions
Lock and keypad, measured.

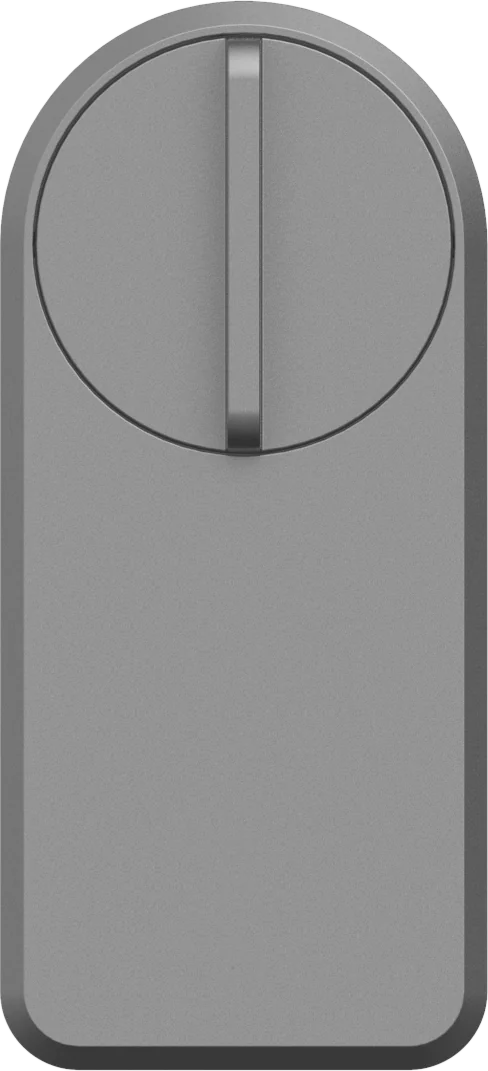

136.7 × 62.9 mm · Height × width
105 × 47 mm · Height × width
Depth is listed separately in the specifications; the front-view drawings do not verify it.
Specifications
Built for everyday Nordic use.
- Easy Fit
- Hub
- Heimgard KeyCloud
- Heimgard Door App
Coming Q1 2027
Remote access with Bridge.
Bridge and remote-access features are currently under development, with planned availability in Q1 2027.
Once available, Bridge is intended to connect Easy Fit to remote access in the Heimgard app. Final functionality may change before release.
Good to know
Questions people ask in store.
Do I need to replace my lock?
No. Easy Fit is designed to mount over a compatible existing thumbturn or key on the inside of your door.
Can I still use my existing key?
Yes, where the existing cylinder supports it. The outside cylinder stays in place, so physical key access can remain available.
Does installation require drilling?
No. Easy Fit is designed for a quick installation without drilling, an electrician or lock-case replacement.
Will it fit my door?
Easy Fit works with many Scandinavian and European thumbturn locks. Check the compatibility points or ask a retailer, installer or Heimgard support for guidance.
Can I unlock remotely?
Bridge and remote-access features are under development, with planned availability in Q1 2027. Final functionality may change before release.
Security
Secure access, designed into the product.
Heimgard lock firmware is developed in Norway. Security depends on the complete door, correct installation and responsible credential management.
Incorrect PIN protection
After repeated incorrect PIN attempts, the keypad is temporarily disabled to slow unauthorised guessing.
Firmware security updates
Heimgard Door checks for available Easy Fit and keypad firmware updates, which can include security enhancements.
Your existing lock remains
Easy Fit operates a compatible existing lock from inside while the original exterior key access stays available.
Video guide
Installation videos
Follow the installation and setup sequence for your product before testing the lock on a closed door.
Manuals & downloads
Easy Fit Smart Lock user manual
Installation, setup, everyday use and troubleshooting for your Easy Fit Smart Lock.
*Based on 10 uses per day, normal operating strength (no extra-strength mode) and normal ambient conditions. Actual battery life varies with use, temperature and door resistance. Check door compatibility before purchase; installation time varies.
